HX480P Automatic Booklet Line smart size adjustment fast setup digital print use

Name: HX480P Automatic Booklet Line smart size adjustment fast setup digital print use
Brand: HXCP
Price: 27200 USD

Wholesale HX480P Automatic Booklet Line smart size adjustment fast setup digital print use from china suppliers

Payment Terms : D/P, D/A, T/T, L/C

Front Cutting Speed : Max 3500 times/h

Model Number : HX480P

Weight (Front Cutting) : 170kg

Paper Width : 145-340mm

Brand Name : HXCP

Weight (Stitcher/Folder & Delivery) : 345kg

Front Cutting Thickness : 5mm

Paper Length : 200-480mm

Min Product Size : 145×100mm

MOQ : 1 set

Front Cutting Width : Max 340mm

Supply Ability : 3 sets/month

Max Product Size : 340×240mm

Speed with Cover : Max 2800 times/h

Weight (Double-Sided Cutting) : 358kg

Folding Thickness : 0.2-2.5mm

Double-Sided Cutting Length : 98-238mm

Place of Origin : China

Binding Speed : Max 4000 times/h

Double-Sided Cutting Speed : Max 2800 times/h

Packaging Details : Stretch Film with Wooden Case

Double-Sided Cutting Width : 140-335mm

Price : USD 27200 per set

Dimensions : 4700×950×1000mm(L×W×H)

Double-Sided Cutting Thickness : 5mm

Front Cutting Length : 95-238mm

Delivery Time : 20 work days

Binding Thickness : 0.2-2.5mm

Contact Now

HX480P Automatic Booklet Line smart size adjustment fast setup digital print use

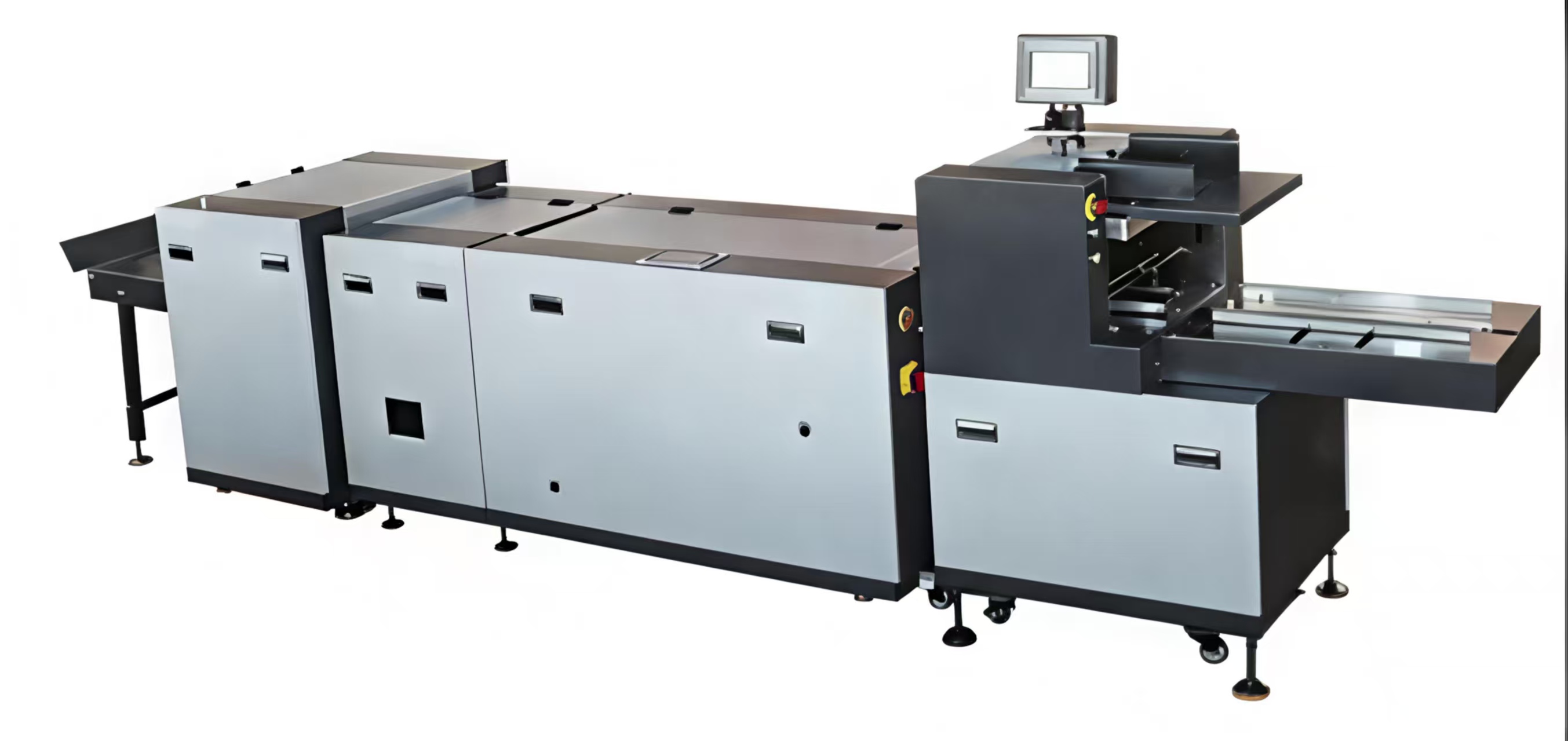

The HX480P Covering Stitching Trimming Machine is a high-efficiency integrated finishing solution specially designed for booklet production. It combines multiple core processes into one fully automatic line, including cover feeding, saddle stitching, folding, flat pressing and three-side trimming. This all-in-one design eliminates the need for multiple standalone devices and frequent material transfer, greatly streamlining the entire booklet manufacturing workflow.

Constructed with a robust heavy-duty steel frame, the machine features outstanding structural rigidity and operational stability. It can withstand long hours of continuous high-speed running without vibration or deformation, laying a solid foundation for consistent production quality in busy print workshops.

Equipped with advanced servo-driven synchronized feeding system, the equipment ensures steady and accurate material delivery throughout operation. It also supports intelligent automatic adjustment for stitching heads and cutting dimensions. Operators can complete parameter setting quickly, which dramatically cuts down traditional manual debugging time and improves overall production flexibility.

Fitted with a professional flat press unit and high-precision trimming mechanisms for front and double sides, the machine delivers neat pressing effect and clean, burr-free cutting results. Every finished booklet features tidy edges, uniform shape and standard appearance, meeting strict quality requirements for commercial printed products.

Boasting a remarkable working speed up to 2800 cycles per hour, this machine achieves excellent productivity for mass production. Its optimized mechanical and control system not only raises output but also maintains stable performance during long-term operation, balancing high speed and reliable quality perfectly.

Optimized for modern digital print environments, the HX480P requires minimal setup time and adapts well to diverse production demands. Whether for bulk orders or variable small-batch tasks, it always produces well-finished booklets efficiently. It is undoubtedly a cost-effective and high-performance upgrade choice for printing and post-press enterprises.
