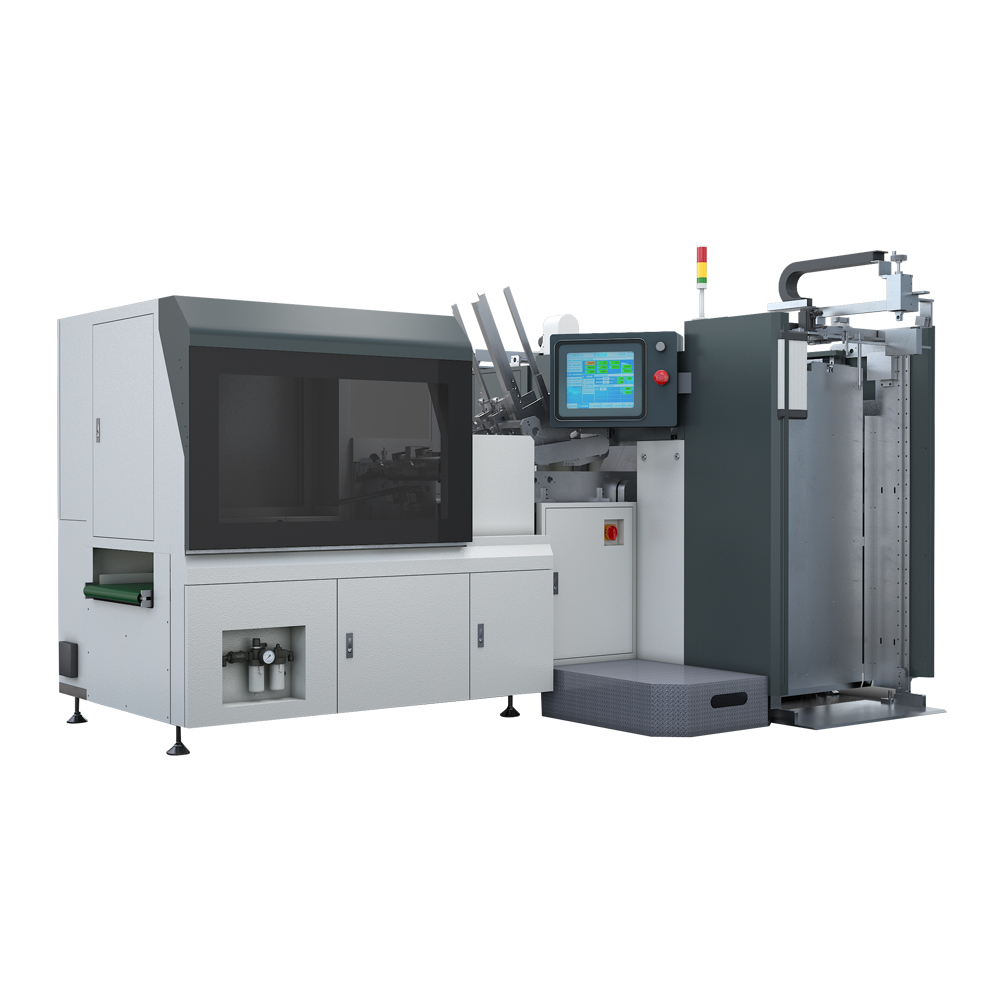

The HX5000B Automatic Lay Flat Binding Machine is a professional all-in-one binding equipment exclusively designed for lay-flat board book production. It targets the manufacturing of children board books, photo books, catering menus and various flat-opening board book products, delivering stable and high-quality lay-flat binding results. As a dedicated solution for board book finishing, it solves the common defects of traditional binding such as poor flatness, uneven mounting and complicated process transition.
This machine integrates multiple core processing procedures into one fully automatic workflow, covering paper board folding, precision gluing, firm mounting, gray board inserting and book pressing. It eliminates the need for separate standalone devices and repeated manual handling. The highly integrated design streamlines the entire board book production process, greatly simplifying the workshop layout and improving production continuity.
Featuring intelligent flexible production capability, the equipment supports diverse automatic job changeover methods. Operators can quickly switch production specifications through simple data input, barcode scanning, or system connection. This intelligent changeover system completely abandons traditional manual mechanical adjustment, significantly shortening preparation time and reducing operation errors.
- Max. Paper Size
- 610×380mm(W×L)
- Min. Paper Size
- 300×150mm(W×L)
- Max. Book Size
- 305×380mm(W×L)
- Min. Book Size
- 150×150mm(W×L)
- Paper Board Thickness
- 200-300gsm coated paper/PVC 0.4-1mm
- Mounting Speed
- 4200-4500signatures/hour (10P), 4800signatures/hour (30P), 5000signatures/hour (10P)
- Inserting Board Speed
- 2100-2200signatures/hour(10P)
- Mounting Precision
- ±0.3mm
- Mounting Thickness
- 5-40mm
- Glue Type
- Cold Glue(Water Base Glue)
- Folding Sets Dimensions
- 2610×1530×1920mm(L×W×H)
- Mounting Sets Dimensions
- 1620×1200×1600mm(L×W×H)
- Mounting Sets Weight
- 0.6T
The HX5000B is particularly optimized forshort-run and multi-batch production, which perfectly fits the current customized and diversified printing market demands. It adapts flexibly to frequent order switching, enabling factories to handle various small-batch board book orders efficiently without sacrificing production quality or speed.
With precise mechanical positioning and stable gluing & pressing systems, the machine ensures tight bonding, accurate gray board insertion and smooth lay-flat effect for every finished book. The processed board books feature zero arching, neat shaping and excellent flat-opening performance, greatly improving the grade and market competitiveness of finished products.
Combining full-process integration, intelligent fast switching and strong versatility, the HX5000B Automatic Lay Flat Binding Machine is an ideal upgraded device for printing and packaging factories specializing in board book production. It effectively reduces production costs, improves operational flexibility, and realizes efficient and standardized customized board book manufacturing.
