Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive

Name: Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive
Brand: HXCP
Price: 38500 USD

Wholesale Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive from china suppliers

Place of Origin : China

Max Times of Punching One Book : 5 times

Supply Ability : 3 sets/month

Pitch : 4/1;3/1;6mm;8mm

Payment Terms : T/T

Speed : 800-1800 books/hour

Punching Thickness(one-time) : 1-6mm

Delivery Time : 20 work days

Max Book Size for Feeding Belt : 400×400mm

Air Pressure : 7-8 Bar

Machine Dimension : 4000×2500×1600mm

Size of Spiral Wire : 1/4"-5/8"

MOQ : 1 set

Packaging Details : Stretch Film with Wooden Case

Max Punching and Binding size : 400mm(punched side)×420mm

Net Weight : 1250kg

Brand Name : HXCP

Min Punching and Binding size : 100mm(punched side)×140mm

Price : USD 38500 per set

Width of Paper for Binding : 100-400mm

Power : 220V/ 50-60Hz/ 6KW

Max Punching Thickness : 13mm(16mm for special product)

Contact Now

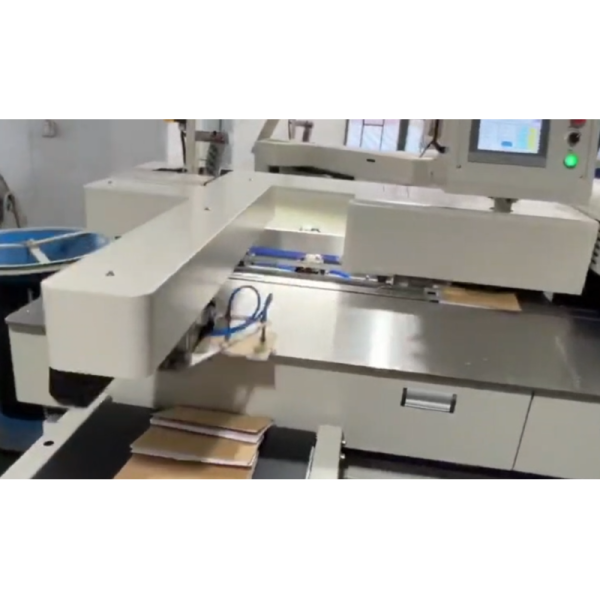

Automatic Spiral Forming Punching and Binding Machine

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive

Automatic Spiral Forming Punching and Binding Machine is the high efficiency binding equipment for various wire binding books, notebooks, exercise books, and calendars, etc. With the integration of automatically spiral wire forming from the wire materials, the bigger cover and inner paper punching separately, then spiral wire cutting, inserting, binding and cuting off and closing for various stationery products, then collecting delivery, one-stop completion, only need 1-2 operators, easy to adjust, high speed and stable.

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive

Product Tags:

automatic spiral binding machine

single wire binding machine easy operation

cost effective punching binding machine

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive Images
